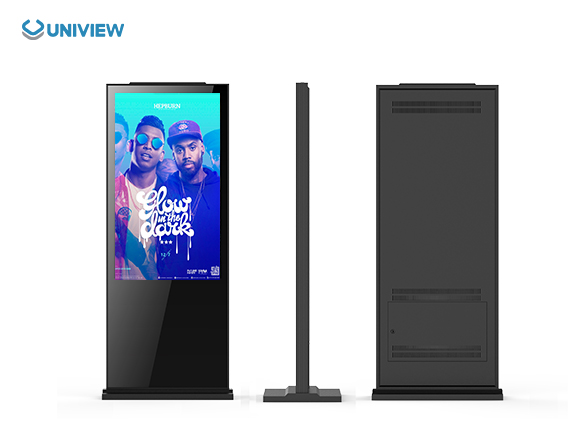

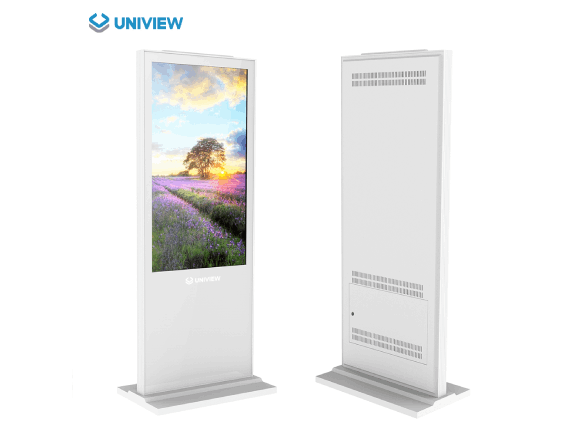

Digital Signage Totem-AL1900
The AL1900 is a professional floor-standing digital signage totem designed for indoor commercial spaces. Featuring a reinforced aluminum profile and a sleek portrait orientation, it integrates a commercial LCD screen with flexible playback systems.
Configure your display with various screen sizes, brightness levels, and optional interactive touch capabilities. It serves as an ideal platform for advertising presentation, public information delivery, brand showcasing, and facility wayfinding.
- 43"–98" Size Options
- Full HD or 4K Options
- Optional Touch
- Android or Windows Options
What Is This Digital Signage Totem?
A digital signage totem is a freestanding commercial display solution. The AL1900 integrates a commercial-grade LCD screen, a robust floor-standing enclosure with a reinforced base, and a dedicated playback system into a single, unified indoor device.
The floor-standing structure is particularly suitable for projects that lack suitable wall-mounting conditions, require high visibility in open areas, or anticipate the need to adjust the display's location in the future. It is widely used to present promotional content, floor wayfinding, brand information, event schedules, and public notices.
Please note that the AL1900 is strictly an indoor digital signage totem and is not suitable for outdoor environments.
How to Choose the Right Configuration
Follow these key steps to select the appropriate hardware and system specifications for your indoor display project.
Choose the Screen Size
Available sizes range from 43" to 98". When selecting a size, consider the typical viewing distance, available installation space, aspect ratio of your content, and the expected foot traffic in the area.
Select the Brightness
Standard options include 350, 700, 1000, and 2000 nits. Actual brightness availability depends on the screen size and panel supply. Higher brightness is recommended for bright indoor environments, but this is not an outdoor unit.
Choose the Playback Platform
Select from a basic driver board, standalone playback, Android, or Windows systems. Base your decision on how you plan to input content, software compatibility requirements, and specific project integration needs.
Decide on Touch Integration
Standard advertising presentations typically do not require touch. If your project involves directory searches, wayfinding, or interactive information retrieval, an optional capacitive or infrared touchscreen can be configured.
Send us the required screen size, viewing distance, content source, touch requirements, operating system and installation environment for configuration guidance.
Available System Configurations
Compare the internal hardware platforms to match your content delivery strategy.
| Feature | Driver Board | Standalone | Android Version | Windows Version |
|---|---|---|---|---|
| Best suited for | External media players | Simple offline looping | Networked CMS & Apps | Complex software & Interactive |
| Main interfaces | HDMI, VGA, DVI | HDMI, USB | HDMI, USB | HDMI, VGA, USB |
| Memory and storage | No onboard media storage specified | 16GB storage | 2GB+16GB, 4GB+32GB | 4GB+128GB up to 32GB+512GB |
| Touch compatibility | Requires external PC connection | Not typically applicable | Fully supported | Fully supported |
| Typical project use | Custom integration projects | Single-location advertising | Chain store digital signage | Wayfinding kiosks & directories |
Interface, memory and storage specifications depend on the selected motherboard and final project configuration.
Where Digital Signage Totems Are Used
The AL1900 is designed to operate continuously in various indoor commercial environments, delivering high-impact visual communication.
Retail Store
Corporate Offices
Hospital & Healthcare
Restaurants & Cafés
Technical Specifications
Detailed parameters for the AL1900 series.
| Display Parameters | |
|---|---|
| Panel Type | Commercial LCD |
| Screen Sizes | 43", 49", 55", 65", 75", 86", 98" (Others customizable upon request) |
| Resolution Options | 1080 × 1920 or 2160 × 3840 |
| Brightness Options | 350, 700, 1000, or 2000 nits |
| Contrast Ratio | 1200:1 or 3000:1 |
| Viewing Angle | 178° wide viewing angle |
| Operating Life | 50,000–60,000 hours rated |
| Orientation & Installation | Portrait / Floor standing |
| Optional Touch | |
| Availability | Optional, not standard |
| Technology | Capacitive touch or infrared touch |
| Touch Points | 10–40 touch points |
| Interface | USB touch interface |
| System and Connectivity | |
| Driver Board Interfaces | HDMI, VGA, DVI |
| Standalone Interfaces | HDMI, USB |
| Android Configurations | HDMI, USB (Memory/Storage: 2GB+16GB, 4GB+16GB, 4GB+32GB) |
| Windows Configurations | HDMI, VGA, USB (Memory/Storage: 4GB+128GB up to 32GB+512GB) |
| Environment | |
| Operating Environment | Indoor use only |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 60°C |
| Humidity | 10%–80% RH, non-condensing |
| Optional Integrations (Subject to Project Evaluation) | |
| Available Options | Wi-Fi access point, Wheels, Camera, Printer, Card reader, Scanner, Custom enclosure colors, Base light bar |
Specifications vary by screen size, panel source and selected system configuration. Final specifications should be confirmed in the project quotation.
Custom Digital Signage Totem Options
As a professional digital signage totem manufacturer, we provide flexible OEM and ODM services to align the hardware with your brand identity and functional requirements.
Whether you need a specific enclosure color, unique base styling, or the integration of specialized peripherals, we can tailor the AL1900 to your project.
Customization capabilities depend on the chosen screen size, internal structure, and overall project feasibility. We require confirmation of application scenarios, quantities, and technical specifications before initiating a custom build.
Aesthetics & Branding
Enclosure color, logo printing, base and side styling, optional base light bar.
Core Hardware
Screen size, touch technology, Android or Windows hardware specifications.
Peripheral Integration
Camera, printer, card reader, scanner integration.
Mobility & Logistics
Base wheels for movement, interface configuration, packaging requirements.
From Requirement to Delivery
Our structured workflow ensures clarity and quality from initial inquiry to final shipment.
Requirement Review
Analyzing your installation environment, content strategy, and technical needs.
Configuration Confirmation
Selecting the precise screen size, brightness, and system hardware.
Drawing or Sample Approval
Providing technical drawings or sample approval when required for custom projects.
Production & Inspection
Manufacturing the units and conducting rigorous quality and aging tests.
Packing & Shipment
Securing the displays in protective packaging for safe transit to your site.
Digital Signage Totem Manufacturing Process
Operating as a dedicated digital signage totem factory, we maintain strict control over the entire production lifecycle. From incoming material inspection and metal processing to screen assembly, software setup, aging tests, and final protective packaging, every step is monitored to ensure the reliability of the AL1900 series.
1. Incoming Material Inspection
2. Metal Processing & Enclosure Preparation
3. Screen and Component Assembly
4. Software Setup & Functional Testing
5. Aging Test & Final Quality Inspection
6. Protective Packing & Shipment
Certification Support for Global Projects
To facilitate smooth importation and compliance with local market regulations, Uniview LCD can provide documentation support for various international standards. Depending on your specific product configuration and destination market, we can supply relevant materials for CE, FCC, PSE, VCCI, RoHS, and CB certifications.
Important Notice: Certification availability and document applicability depend on the selected product configuration and destination market. Confirm the required certification before ordering.
Representative certification documents (Subject to specific model configuration)
Frequently Asked Questions
Common inquiries regarding the AL1900 series.
Is the AL1900 designed for indoor or outdoor use?
What screen sizes are available?
Is a 55-inch digital signage totem available?
Does the display support 4K resolution?
Can the digital signage totem include a touchscreen?
What operating-system options are available?
How can content be connected or updated?
Which parts of the enclosure and hardware can be customized?
What information is required for a quotation?
Let's Discuss Your Project
Share your requirements regarding screen sizes, quantities, system preferences, and any customization needs. Our team will provide a comprehensive configuration proposal and quotation.
